| Tipo di pagamento: | L/C,D/P,T/T |
| Incoterm: | FOB,CFR,EXW,CIF |
| Trasporti: | Ocean,Land,Express |
| Porta: | Tianjin,Qingdao,Shanghai |
Modello: Q195 Q215 Q235 Q345
Standard: bs, GB, ASTM, API, JIS, DIN
Materiale: A53-A369, Q195-Q345, 10 # -45 #, ST35-ST52
Forma Della Sezione: Piazza, Rettangolare
Luogo D'origine: Cina
Applicazione: Tubo del fluido, Tubo idraulico, Tubo del gas, TUBO OLIO, Tubo della struttura
Processo Produttivo: Laminati a caldo
Certificazione: ce, API
Tubo Speciale: API Pipe
Sia Lega: Non legato
Tolleranza: ± 1%
Categoria: Tubi quadrati, Tubo in acciaio saldato
Servizio Di Elaborazione: Flessione, Saldatura, Decoiling, Punzonatura, Taglio
Grado: Q195-Q355
Length: According to Customer Requirement
Specification: 10*10--1000*1000, 0.3mm--50mm
| Unità vendibili | : | Ton |
| Tipo pacchetto | : | Packaging marino standard o come richiesto dal cliente |
| Esempio immagine | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
Che tipo di tubo/tubo possiamo fare?

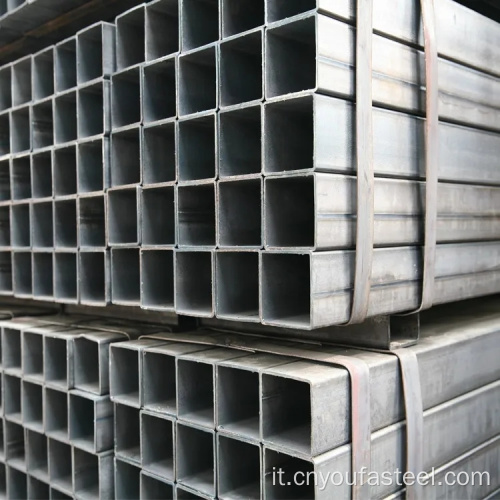

MS Square Acciaio tubo da 20x20 mm in acciaio per materiale da costruzione
Abbiamo otto linee di produzione, tubi quadrati da 10 mm*10mm-1000mm*1000 mm; 10 mm*20 mm-800 mm*tubi rettangolari da 1000 mm, spessore: 0,3 mm-50 mm, oltre 2800 tipi di specifiche.
Il grado in acciaio che possiamo fare come il seguente foglio:
| Executive standard |
China GB/T3094-2000 GB/T6728-2002 |
Europe EN10210-2006 EN10219-2006 |
German DIN17100-80 |
America ASTM A106/A500 |
Japan JIS G3466 |
| Steel grade | Q195, Q215, Q215B | S185 | ST33 |
|
SS330 |
| Q235B | S235JR | ST37-2 | Gr. A | SS400 | |
| Q235C | S235J0 | ST37-3 |
|
|
|
| Q345B | S355JRH | ST52-2 | Gr. B | STK490 | |
| Q345C, Q390B, Q390C | S355J0H | ST52-3 | Gr. C |
|
|
| Q345D | S355J2H |
|
Gr. D (with heat treatment) |
|
|
| Q345E |
|
|
|
|
|
| 20# |
|
|
Gr. B |
|
|
| 45#, 20Mn2, 27SiMn |
|
|
|
|
|
| OD range | 20mm*20mm--600mm*600mm | ||||
| 20mm*30mm--600mm*800mm | |||||
| Wall thickness | 1.5mm--35.0mm | ||||
|
Length |
2m-12m ,by customer's requirements |
|
Standards |
GB/T6728-2002,GB/T6725-2002, GBT3094-2000,JG178-2005, ASTM A500 JIS G3466,EN10210,EN10219 |
|
Product Category |
Metallurgy, Mineral & Energy |
|
Technique |
Welded, ERW Cold Rolled, Hot Rolled |
|
Surface |
Bared, Galvanized, Oiled,Or Other Anti-corrosive Treatment. We can produce other specifications according to customers requirements. |
|

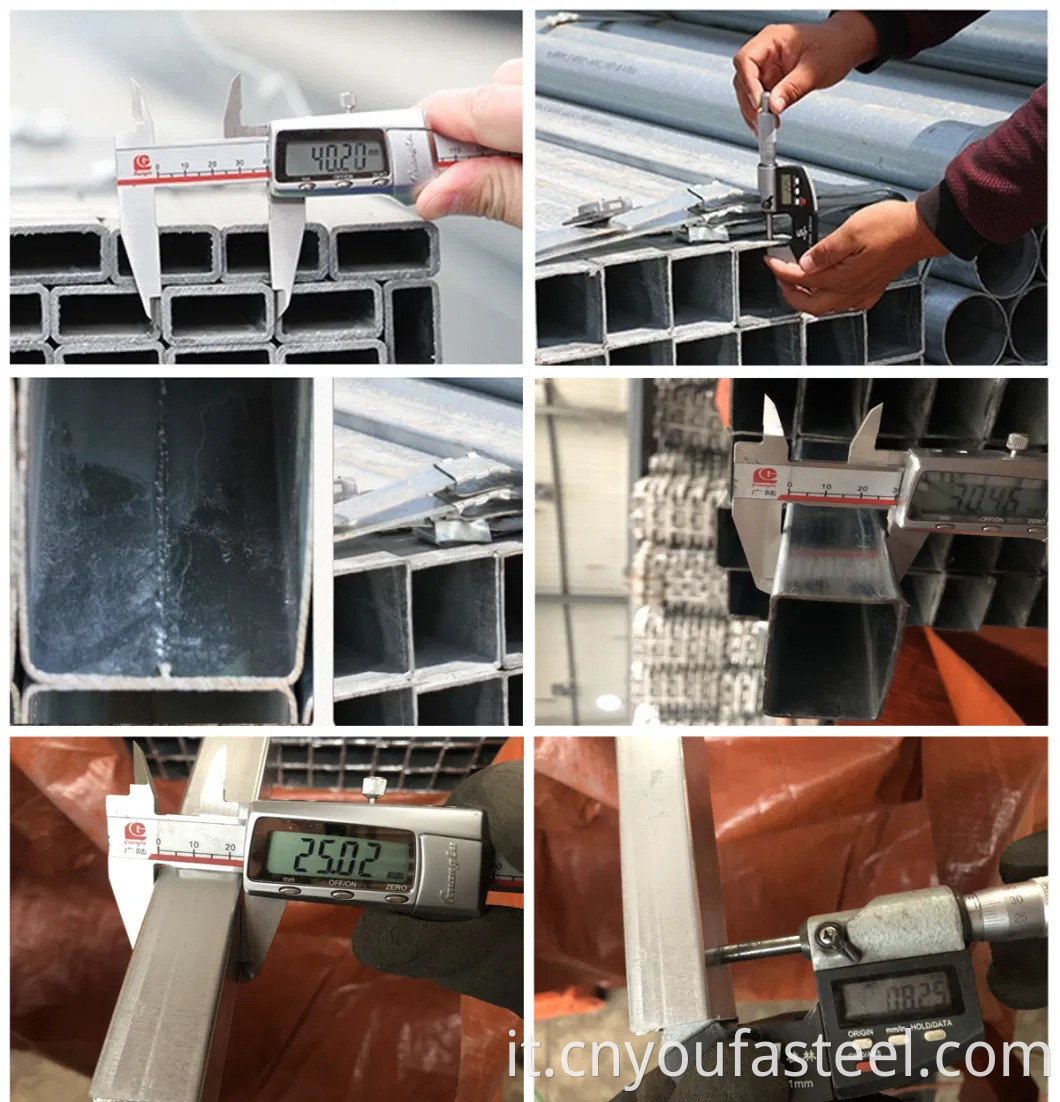

Inspection |
With Chemical Composition and Mechanical Properties Analysis; Hydrostatic Test Dimensional and Visual Inspection, Also With Nondestructive Inspection |
|

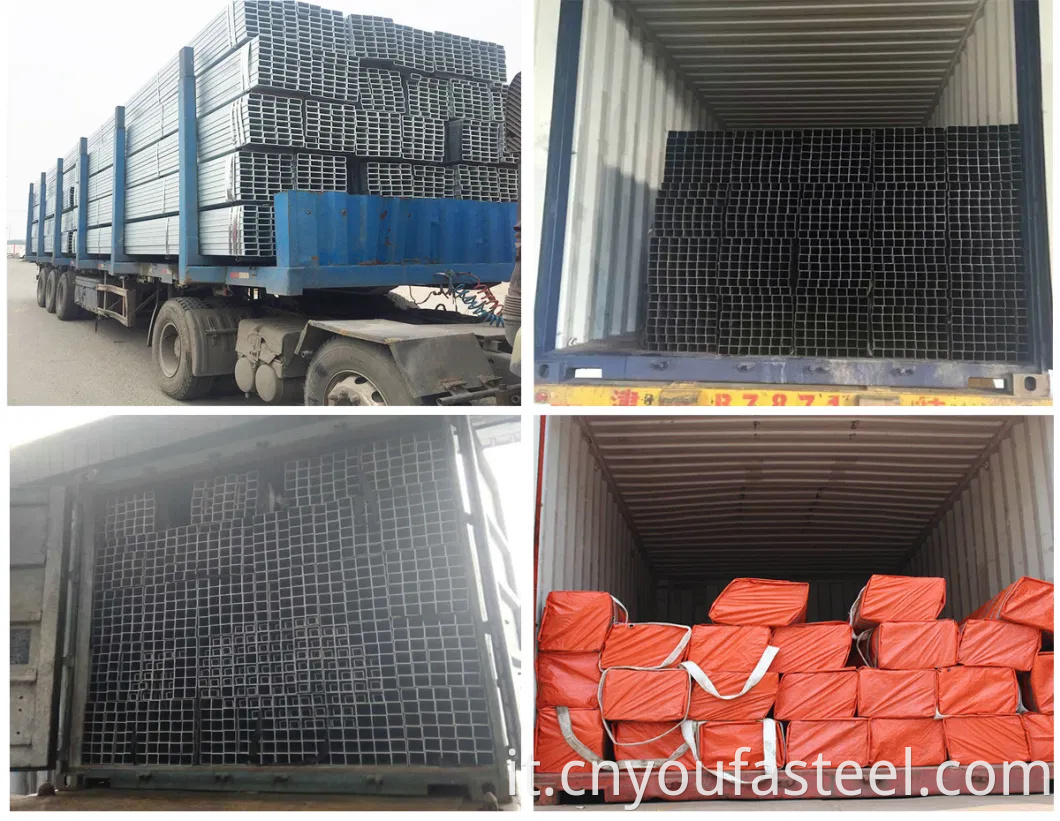

Packing |
1. Big OD:in bulk 2. Small OD:packed by steel strips 3. 20"GP:5.85*2.2*2.2 40"GP:11.85*2.2*2.2 Black steel pipe: oiled/painted, in bundles and tarpaulin outside According to the requirements of customers |
|
Application |
Mechanical & manufacture, Steel structure, Shipbuilding, Bridging ,Automobile chassis Industrial water lines/plant piping, Vehicular chassis and frames, Idlers & belt conveyors Agriculture and Irrigation, Scaffolding, Electrical Cable conduits, Cooling towers, Antenna and Telecommunication Towers, Cold storage, Tabular poles Fire Protection Systems, HVAC Plumbing,Fabrication industry, Food Processing, Pharmaceutical, Petrochemical, Chemical, Machine Building, Automobile. |
|
Main market |
North America, South America, Eastern Europe, Southeast Asia Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia |
|
Productivity |
20000 Tons per Month |
|
Delivery Detail |
15-20days after receive the prepayment or L/C |
